Core Capabilities
▸ Up to 87% energy savings compared to conventional drive systems, verified through optimized motor and heating control design
▸ Compact structure optimized for laboratory environments
▸ Multi-layer production capability up to 7 layers
▸ Pneumatic thickness adjustment system
▸ Automatic thickness stabilization and tolerance correction
▸ Stable surface quality with advanced roll design

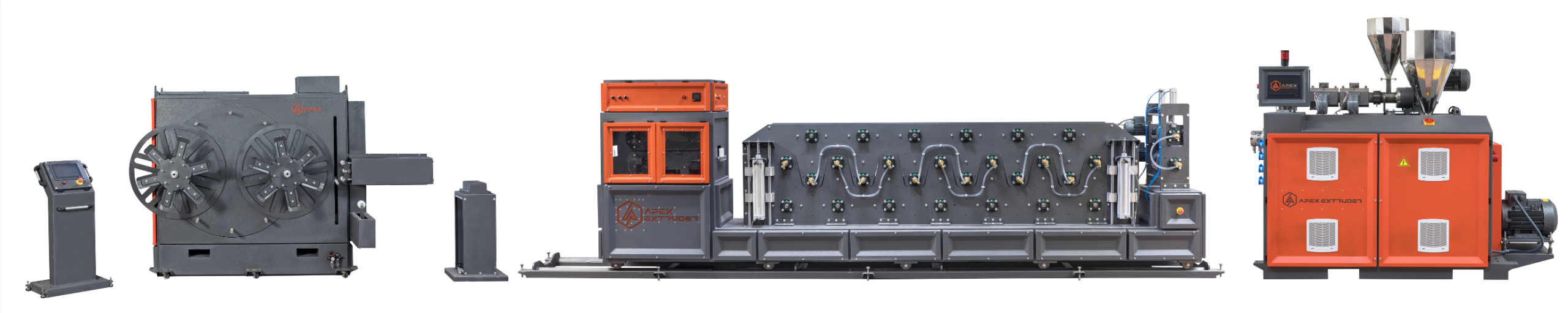

System Architecture
▸ Main extruder: Ø25 – Ø45 mm
▸ L/D ratio: 30 / 26
▸ Lab-scale calender system with synchronized structure
▸ Independent or integrated operation
▸ Full synchronization between extruder and downstream units
Material Range
▸ TPE, TPV, PVC, EVA, TPO
▸ PP, PE, PETG, PS

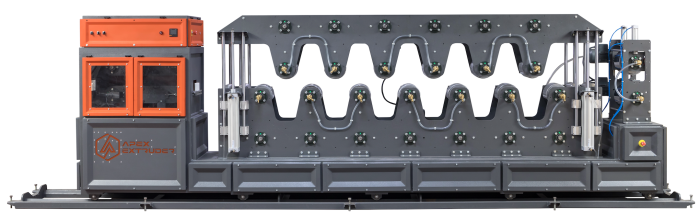

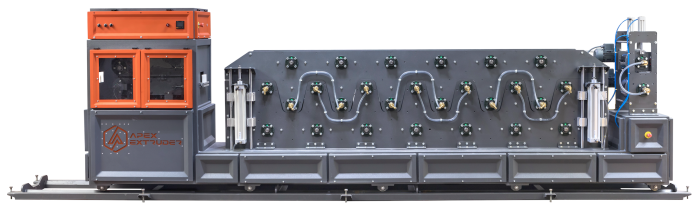

Calender & Process Technology

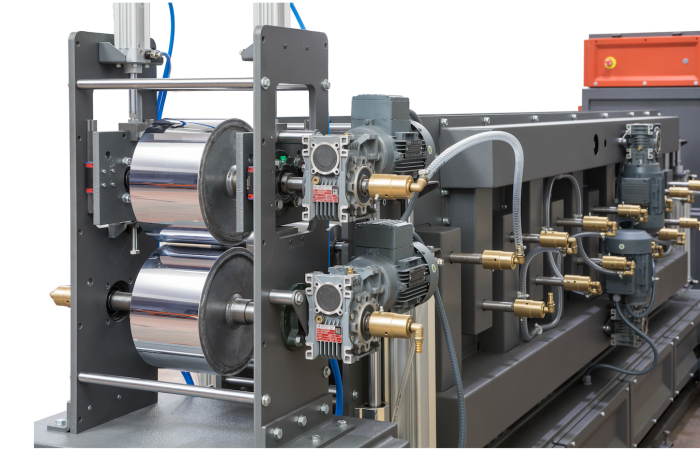

▸ Double-wall special flow calender rolls
▸ ±1°C roll temperature tolerance
▸ Linear guide bearing system
▸ Pneumatic thickness control
▸ Automatic tolerance adjustment system
▸ 15-zone cooling system for precise temperature management
Technical Range
▸ Working width: 100 mm – 300 mm
▸ Thickness range: 0.15 mm – 8 mm
▸ Multi-layer configurations available
▸ Standalone or integrated operation
Automation & Control
▸ Industry 4.0 infrastructure with system integration
▸ Remote monitoring and control
▸ PLC-based multi-access control system
▸ User-friendly HMI interface
Safety & Reliability
▸ Personnel protection sensor barriers (HSE compliant)
▸ Emergency stop systems
▸ CE, UL and CSA compliant
▸ 10-year spare parts and service guarantee
▸ ROI annual range: 50% – 300%
Application Areas
▸ Bee hive anti-parasite strips
▸ Lab-scale edge band production
▸ Material testing for PVC, TPE, PA, EVA and similar materials
▸ R&D and process development applications
