Core Capabilities
▸ Up to 87% energy savings compared to conventional drive systems, verified through optimized motor and heating control design
▸ Compact line structure with optimized space utilization
▸ Continuous automatic adjustment with motion control system
▸ Multi-layer production capability up to 7 layers
▸ High-precision thickness control with servo / hydraulic systems
▸ Automatic thickness correction and tolerance stabilization
▸ Stable surface quality with advanced calender roll technology

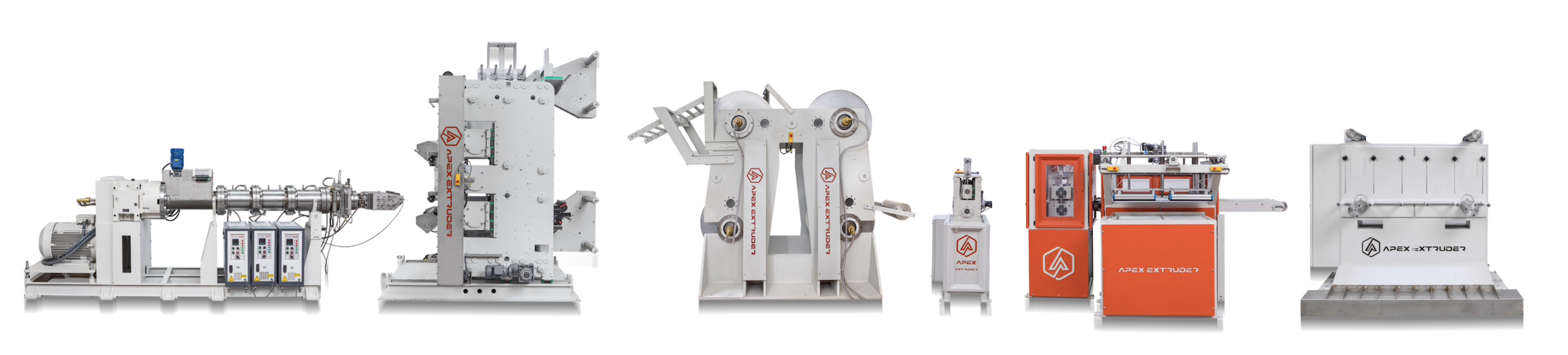

System Architecture
▸ Main extruder: Ø40 – Ø160 mm
▸ L/D ratio: 14, 17, 19, 24, 30, 37
▸ Fully synchronized extrusion and calender system
▸ Independent or fully integrated line operation
▸ Continuous production without interruption
Material Range
▸ Custom-engineered materials based on application requirements
▸ Suitable for technical, medical, and high-performance compounds
▸ PIB, PCB
▸ Silicone and rubber-based materials
▸ Optimized configurations enable processing of PVC, PC, and a wide range of thermoplastic materials

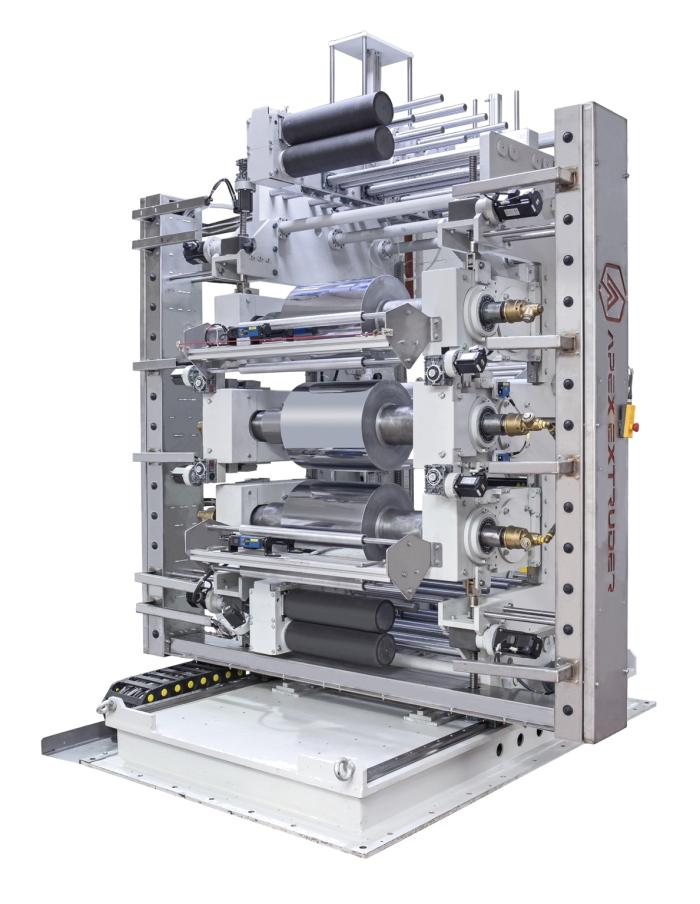

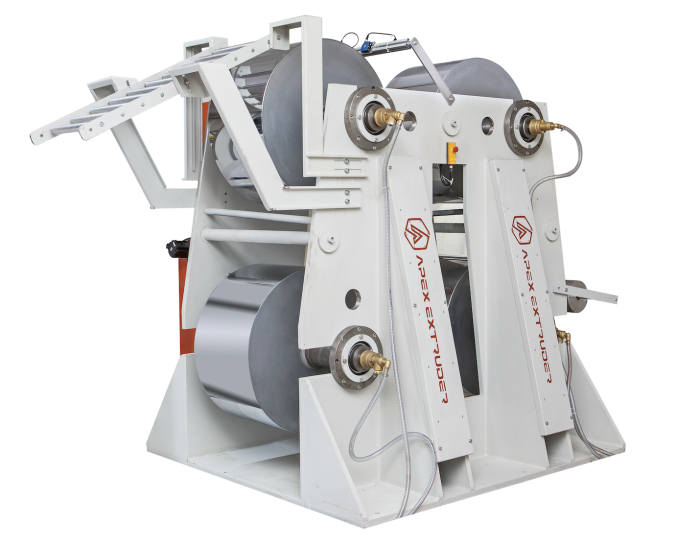

Calender & Process Technology
▸ Double-wall special flow calender rolls
▸ ±1°C roll temperature tolerance
▸ Linear guide bearing system
▸ Servo / hydraulic thickness adjustment
▸ Motion control system for continuous auto-adjustment
▸ IO-supported control infrastructure
▸ Encoder-based precise length measurement
▸ Automatic tolerance adjustment and thickness stabilization
▸ Layer distribution and edge control
Technical Range
▸ Working width: 300 mm – 2400 mm
▸ Thickness range: 0.07 mm – 18 mm
▸ Multi-layer configurations available
▸ Standalone or fully integrated operation
Automation & Control
▸ Industry 4.0 infrastructure with full system integration
▸ Remote monitoring and control
▸ PLC-based multi-access control system
▸ User-friendly HMI interface
Safety & Reliability
▸ Personnel protection sensor barriers
▸ Emergency stop systems
▸ CE, UL and CSA compliant
▸ 10-year spare parts and service guarantee
▸ ROI range: 50% – 300%
Application Areas
▸ Hydrocolloid sheet production
▸ Precision rubber sheet production
▸ Defense industry sheets and technical plates
▸ Medical-grade sheet applications
▸ Fully automatic production lines for niche and high-precision industries
