Core Capabilities
▸ Up to 87% energy savings compared to conventional drive systems, verified through optimized motor and heating control design
▸ Compact line structure with optimized space utilization
▸ Multi-layer production capability up to 7 layers
▸ Servo / hydraulic thickness adjustment
▸ Automatic thickness stabilization and tolerance correction
▸ Stable surface quality with advanced roll technology

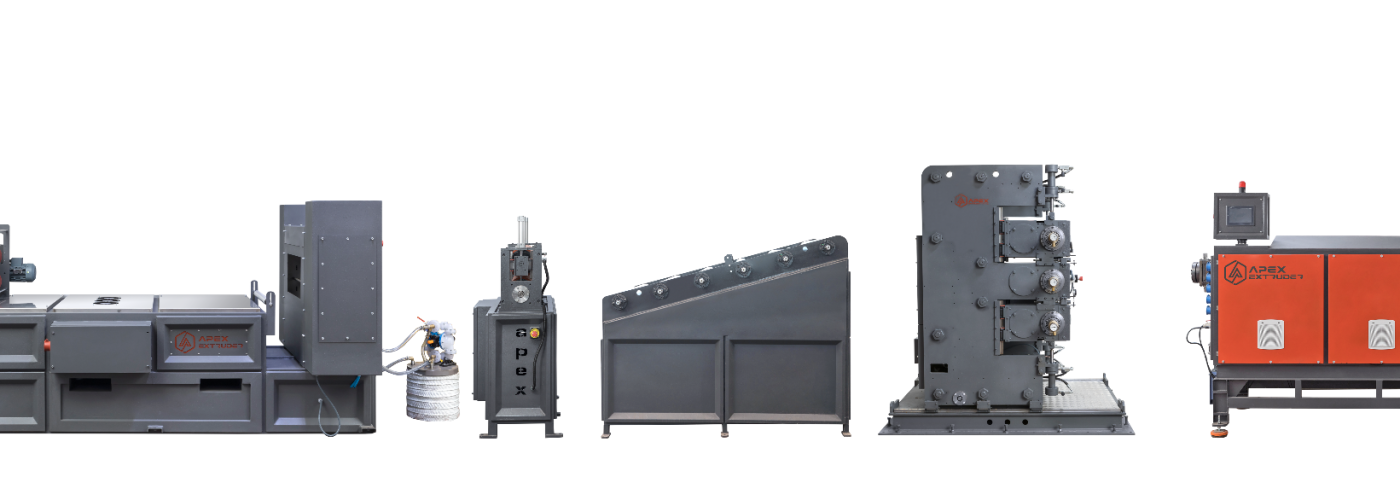

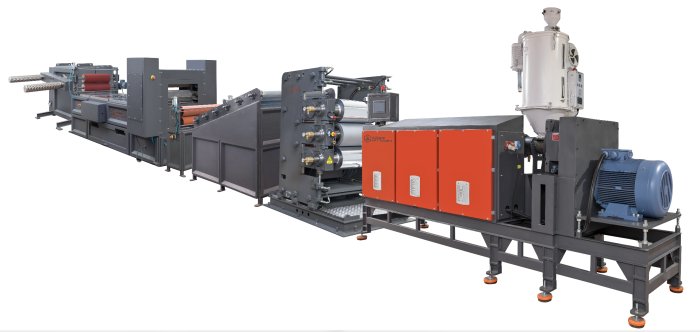

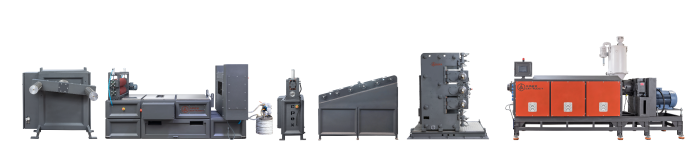

System Architecture
▸ Main extruder: Ø40 – Ø160 mm
▸ L/D ratio: 30
▸ Vertical calender system with synchronized line structure
▸ Independent or fully integrated operation
▸ Full synchronization between extruder and downstream units
Material Range
▸ TPE, TPV, PVC, EVA, TPO

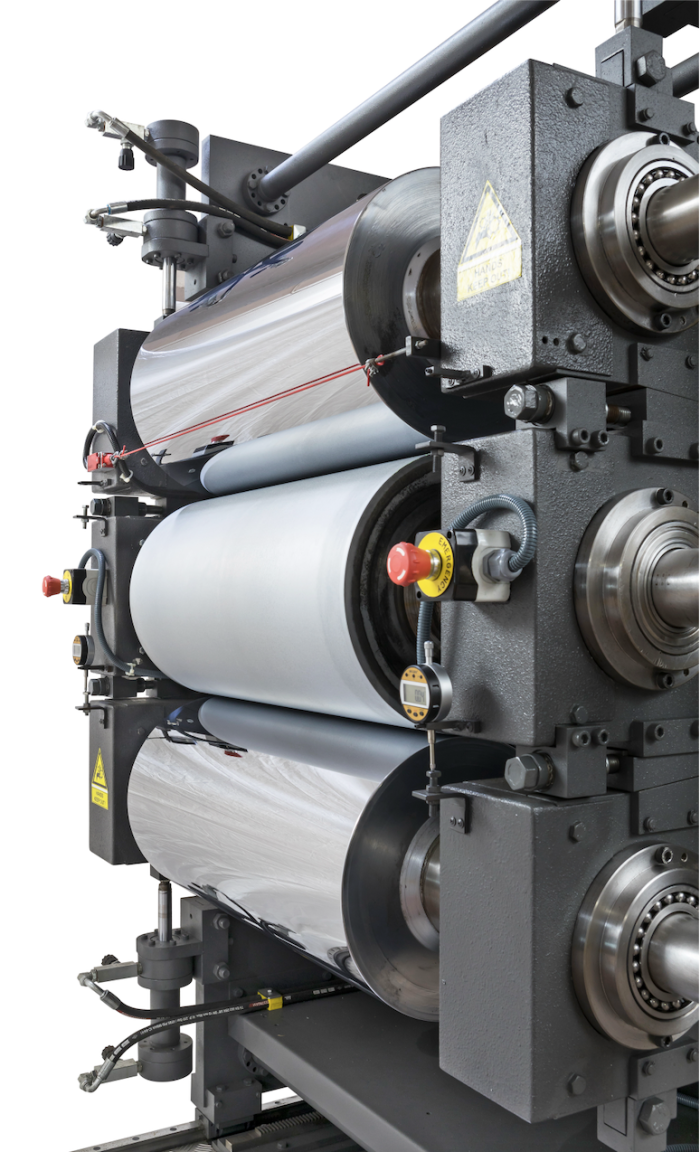

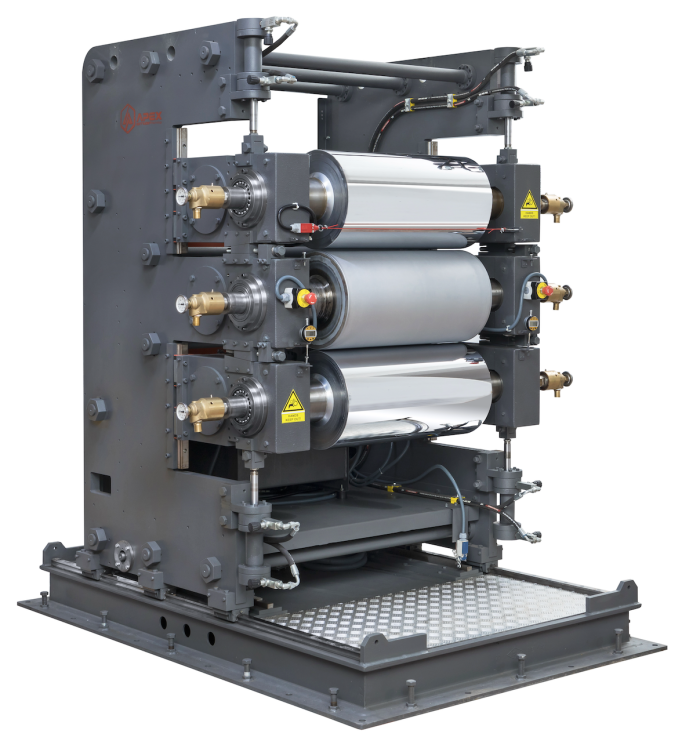

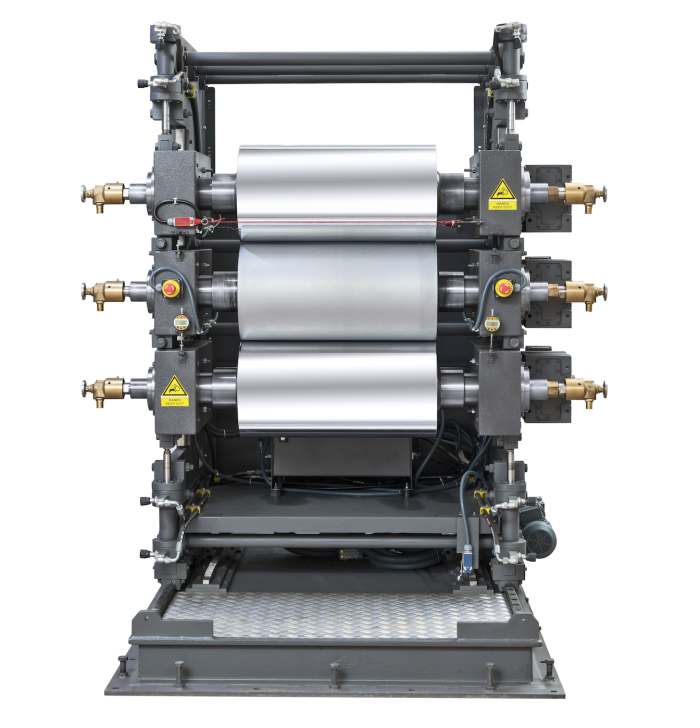

Calender & Process Technology
▸ Double-wall special flow calender rolls
▸ ±1°C roll temperature tolerance
▸ Linear guide bearing system
▸ Servo / hydraulic thickness control
▸ Automatic tolerance adjustment system
▸ Layer distribution and edge control
▸ Advanced cooling and surface stabilization
Technical Range
▸ Working width: 300 mm – 2400 mm
▸ Thickness range: 0.07 mm – 18 mm
▸ Multi-layer configurations available
▸ Standalone or integrated line operation
Automation & Control
▸ Industry 4.0 infrastructure with system integration
▸ Remote monitoring and control
▸ PLC-based multi-access control system
▸ User-friendly HMI interface
Safety & Reliability
▸ Personnel protection sensor barriers
▸ Emergency stop systems
▸ CE, UL and CSA compliant
▸ 10-year spare parts and service guarantee
▸ ROI( Return On Invest ) annual range: 50% – 300%
Application Areas
▸ Automotive interior components
▸ Roof and wall panels (geomembrane applications)
▸ Blister film production for medical and pharmaceutical use
▸ Geomembrane, geogrid and geocell production for tunnels, buildings and highways
▸ Sports mats and impact-resistant wall coverings
▸ Furniture edge banding
▸ Decorative and laminated wall panels
▸ TPU sheets
