Key Advantages

▸ Precision & Thickness Control
Servo/hydraulic adjustment with automatic thickness compensation and ±1°C cylinder tolerance.

▸ Thermal Stability
Double-walled cylinders with optimized flow for uniform heat distribution.

▸ Flexible Production Range

  • 300–2400 mm width
  • 0.07–18 mm thickness
  • multi-layer capability with edge control

▸ System Integration

  • Full synchronization with extruder,
  • Industry 4.0 infrastructure,
  • remote access.

▸ User Experience & Safety

  • User-friendly HMI,
  • Independent operation,
  • Sensor barriers
  • Emergency stop
  • Faster ROI & Long-Term Support

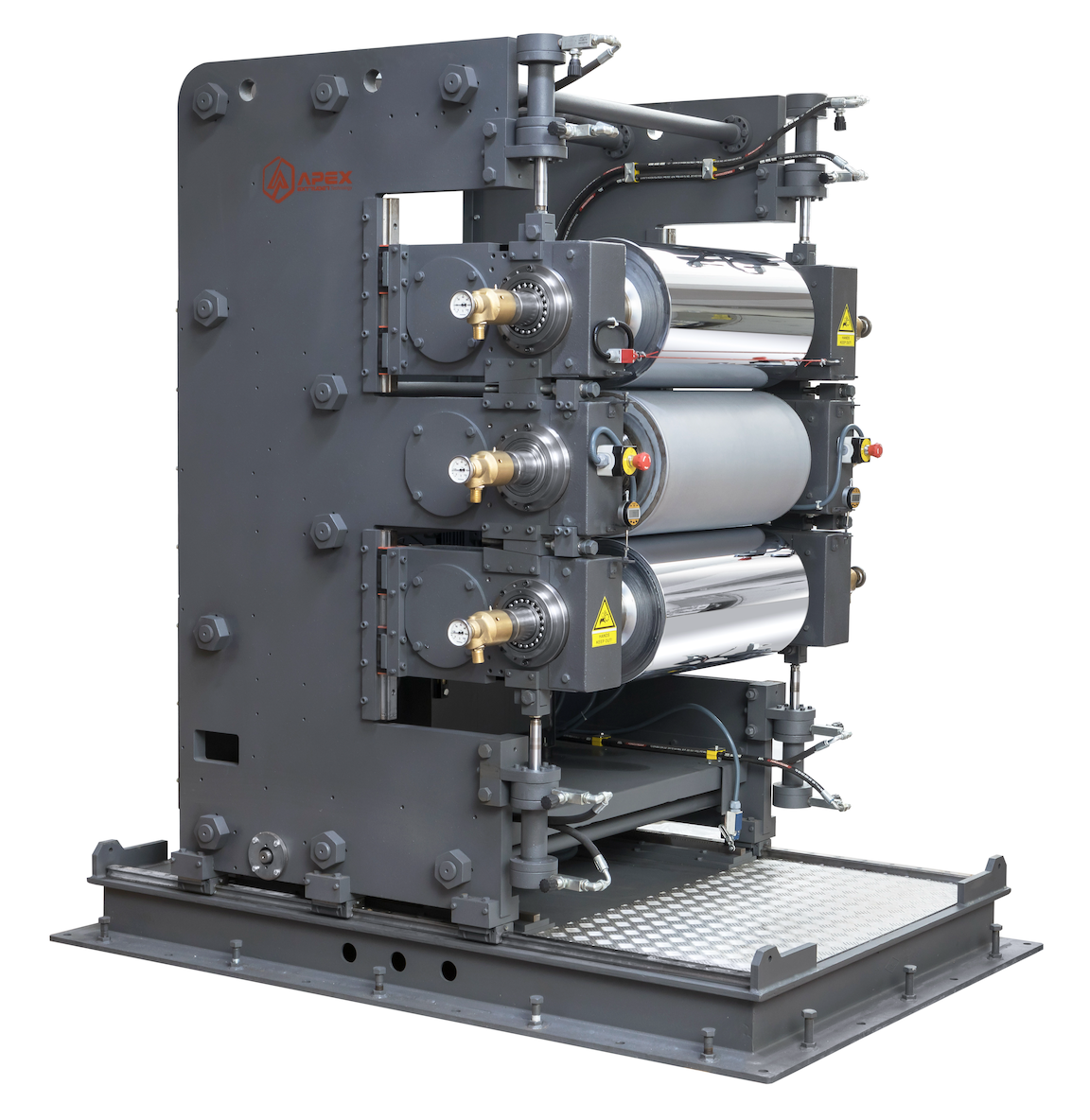

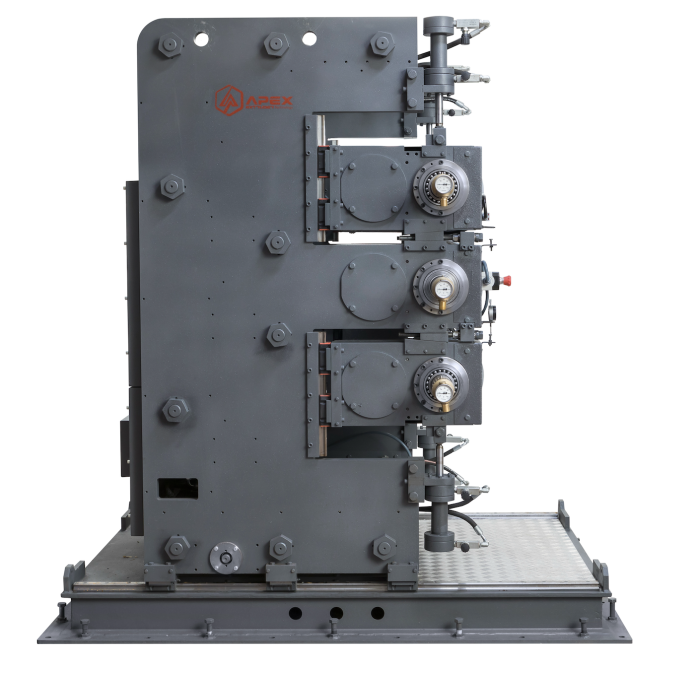

Technical Specifications

▸ Machine Width: 300 mm – 2400 mm
▸ Thickness Range: 0.07 mm – 18 mm
▸ Thickness Control: Servo / Hydraulic

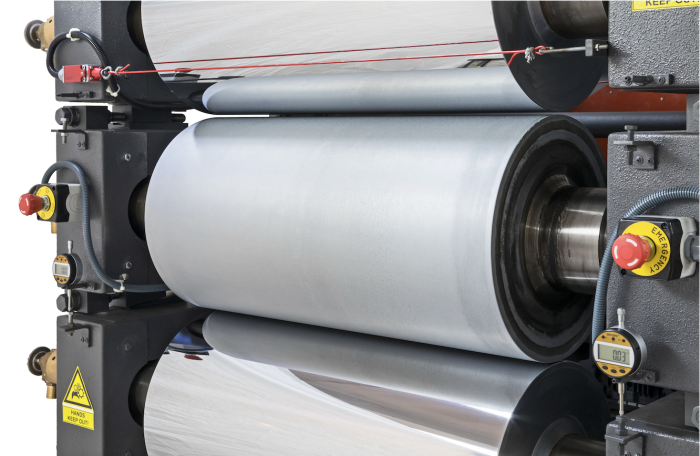

▸ Cylinder Structure: Double-walled, optimized flow design
▸ Temperature Tolerance: ±1°C
▸ Layer Options: Multi-layer compatible
▸ Process Control System: PID-based SSR control
▸ Synchronization: Full line synchronization with extruder

Engineering & System Details

▸ Linear rail bearing system for high stability and smooth operation
▸ Automatic thickness correction system
▸ Edge control system for layer alignment
▸ Remote control and monitoring capability
▸ Multi-zone access and control system

Application Areas

▸ TPE, TPV, PVC, EVA, TPO sheet production
▸ Soft and rigid sheet applications
▸ Multi-layer sheet structures
▸ Industrial and technical sheet manufacturing
