Key Advantages
▸ High Cutting Precision
±0.5 mm tolerance with encoder-based measurement.
▸ Wide Working Range
8–2400 mm working width with adjustable cutting length.
▸ Flexible Cutting System
Pneumatic, servo, and eccentric cutting options.
▸ Process Stability
Linear rail system ensures smooth and stable motion.
▸ User Experience & Reliability
User-friendly HMI, Faster ROI & Long-Term Support
Technical Specifications
▸ Working Width: 8 mm – 2400 mm
▸ Cutting Length: Adjustable
▸ Cutting Thickness: Variable
▸ Cutting Tolerance: ±0.5 mm
▸ Cutting Motion: Pneumatic / Servo / Eccentric options
▸ Measurement: Encoder-based precise length measurement
▸ Synchronization: Full line synchronization with extruder
▸ Compliance: CE, UL, CSA
Engineering & System Details

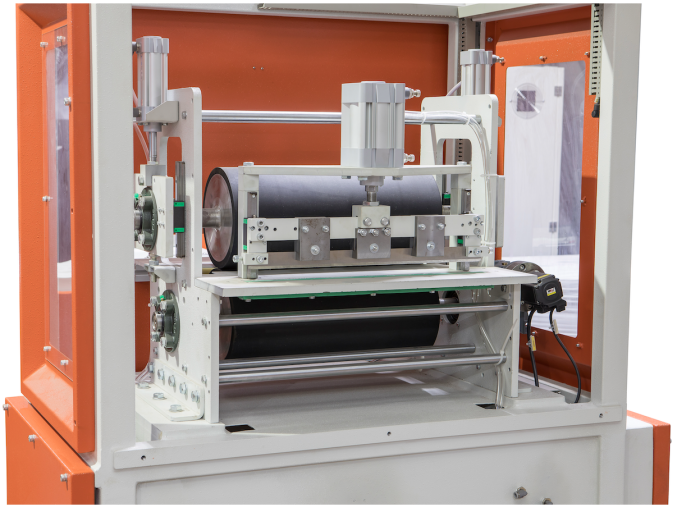

▸ Linear rail bearing system for smooth cutting motion
▸ Pusher system for sheet handling
▸ Stable and precise cutting mechanism
▸ Emergency stop system
▸ Remote monitoring and control
▸ Multi-zone access and control system
▸ 10-year spare parts availability and service guarantee
Application Areas
▸ Sheet cutting processes
▸ PVC, PP, PE, PC sheet production
▸ Soft and rigid sheet applications
▸ Continuous extrusion lines
