Key Advantages
▸ High Cutting Precision
±0.5 mm tolerance with encoder-based measurement.
▸ Flexible Cutting Range
8–250 mm working width with adjustable cutting length.
▸ Advanced Motion Control
Servo-driven forward movement with multiple cutting options.
▸ Process Adaptability
Heating tunnel and blade heating for sensitive materials.
▸ User Experience & Reliability
User-friendly HMI, Faster ROI & Long-Term Support
Technical Specifications
▸ Working Width: 8 mm – 250 mm
▸ Cutting Length: Adjustable
▸ Cutting Thickness: Variable
▸ Cutting Tolerance: ±0.5 mm
▸ Drive System: Servo forward movement
▸ Cutting Motion: Pneumatic / Servo / Eccentric options
▸ Measurement: Encoder-based precise length measurement
▸ Additional Systems: Heating tunnel, blade heating system, counter
▸ Synchronization: Extruder synchronized or standalone operation
▸ Compliance: CE, UL, CSA
Engineering & System Details

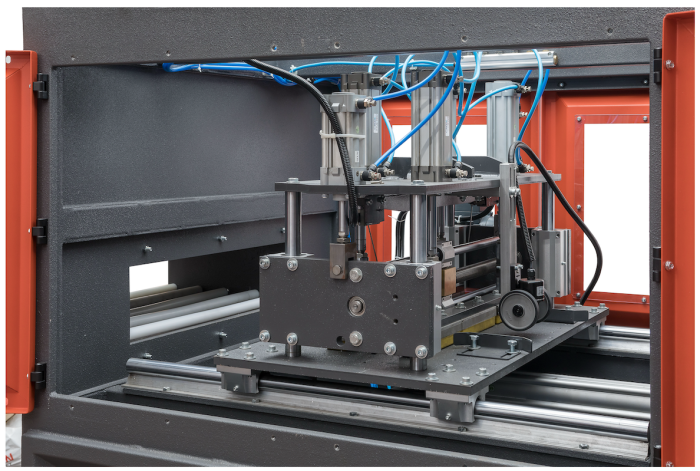

▸ Linear rail bearing system for smooth cutting motion
▸ Pusher system for sheets and thin materials
▸ Independent operation capability
▸ Remote monitoring and control
▸ Multi-zone access and control system
▸ 10-year spare parts availability and service guarantee
Application Areas
▸ Sheet and strip cutting processes
▸ PVC, PP, PE, PC materials
▸ Soft and rigid material cutting
▸ Continuous extrusion lines
