Key Advantages
▸ Uniform Cooling Performance
Maximum 1°C temperature difference between cylinder inlet and outlet.
▸ Dimensional Stability
Optimized design ensures linearity and stable sheet structure.
▸ Flexible Configuration
300–2400 mm width options with multiple cylinder diameter selections.
▸ System Integration
- Extruder synchronization,
- Industry 4.0 infrastructure,
- Remote access.
▸ User Experience & Reliability
- User-friendly HMI,
- Faster ROI & Long-Term Support
Technical Specifications
▸ Cylinder Diameter: Ø150 mm – Ø254 mm
▸ Machine Width: 300 mm – 2400 mm
▸ Temperature Stability: Max. 1°C difference (inlet/outlet)

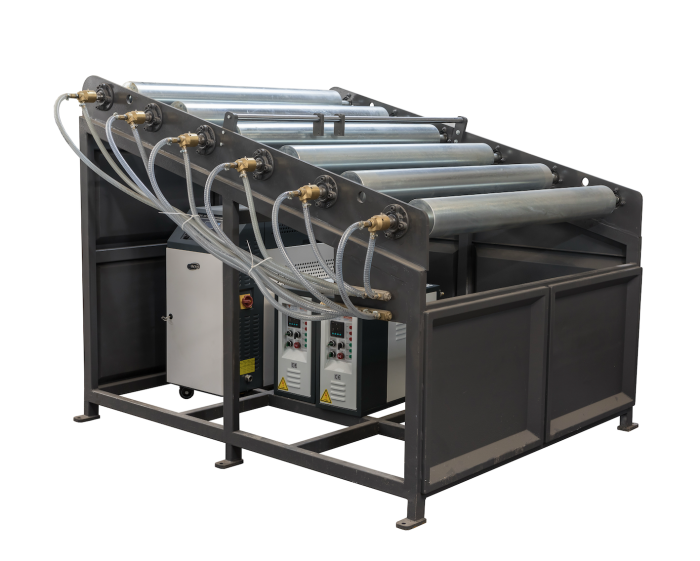

▸ Cooling Structure: Precision-controlled cylinder cooling system
▸ Process Control System: PID-based control architecture
▸ Synchronization: Full line synchronization with extruder
▸ Compliance: CE, UL, CSA
Engineering & System Details
▸ Optimized cylinder design for uniform cooling
▸ High-precision temperature control system
▸ Remote monitoring and control
▸ Multi-zone access and control system
▸ 10-year spare parts availability and service guarantee
Application Areas
▸ Sheet extrusion lines
▸ PVC, PP, PE, PC sheet production
▸ Soft and rigid sheet applications
▸ High-quality surface finishing processes
